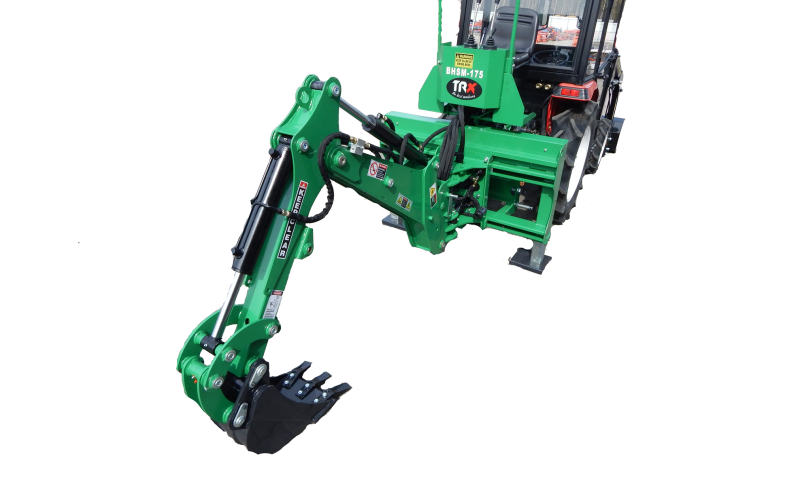

Excavator BHMS175 + shifting

  • Manufacturer: TRX
  • Availability: Exists Exists  (10 szt.)
  • szt.
  • Net Price: €3,716.41 €4,571.19
  • pobranie InPost, pobranie Raben, pobranie FedEx, eRaty Santander Consumer Bank, PayU, BLIK i inne płatności, Payment via bank transfer, Payment in cash

Excavator with dedicated hydraulic pump mounted on the three-point hitch of the tractor, BHMS model.

Very robust excavator driven by the tractor power take-off shaft. It is equipped with a dedicated hydraulic pump that supplies the entire hydraulic system of the excavator. This model features an additional function for changing the position of the working arm so that the excavator can dig trenches just next to fences and building walls (the support arms are pulled down and not folded out to avoid the distance from the excavation line). This excavator model is a very good offer for horticultural companies, which have their own tractors. The excavator is fully functional, highly efficient and made of steel of the right quality to ensure long-term and trouble-free operation.

Applications:

  • All horticultural work that consists of excavation (irrigation, planting).
  • Construction earthwork.



 Technical data:

  • Attached to the three-point hitch on the tractor (Category 1).
  • Driven by the tractor’s PTO shaft – 540 rpm.
  • Stable hydraulic pump in the excavator.
  • Available interchangeable bucket: 40 cm, 65 cm.
  • Mass – 520 kg.
  • Bucket width – 30 cm.



  • Loading Height cm(A) - 237 cm
  • Digging Depth cm(B) - 175 cm
  • Max. Height cm(c) - 312 cm
  • Digging Width cm(D) - 260 cm
  • Swing Angle - 180 ˚




Before starting the side shift of the excavator's working arm, first set the release valve to the position as in the film. After setting the arm, the release valve must be returned to the original position.

BHMS 225

BHMS 225.



BHMS 175 GEOGRASS with bucket 65 cm.
